20/25/35mm Vacuum Brazed Diamond Drilling Finger Milling Bits M14 Thread for Granite Marble Ceramic Drilling Tool

  • Product Item：A865

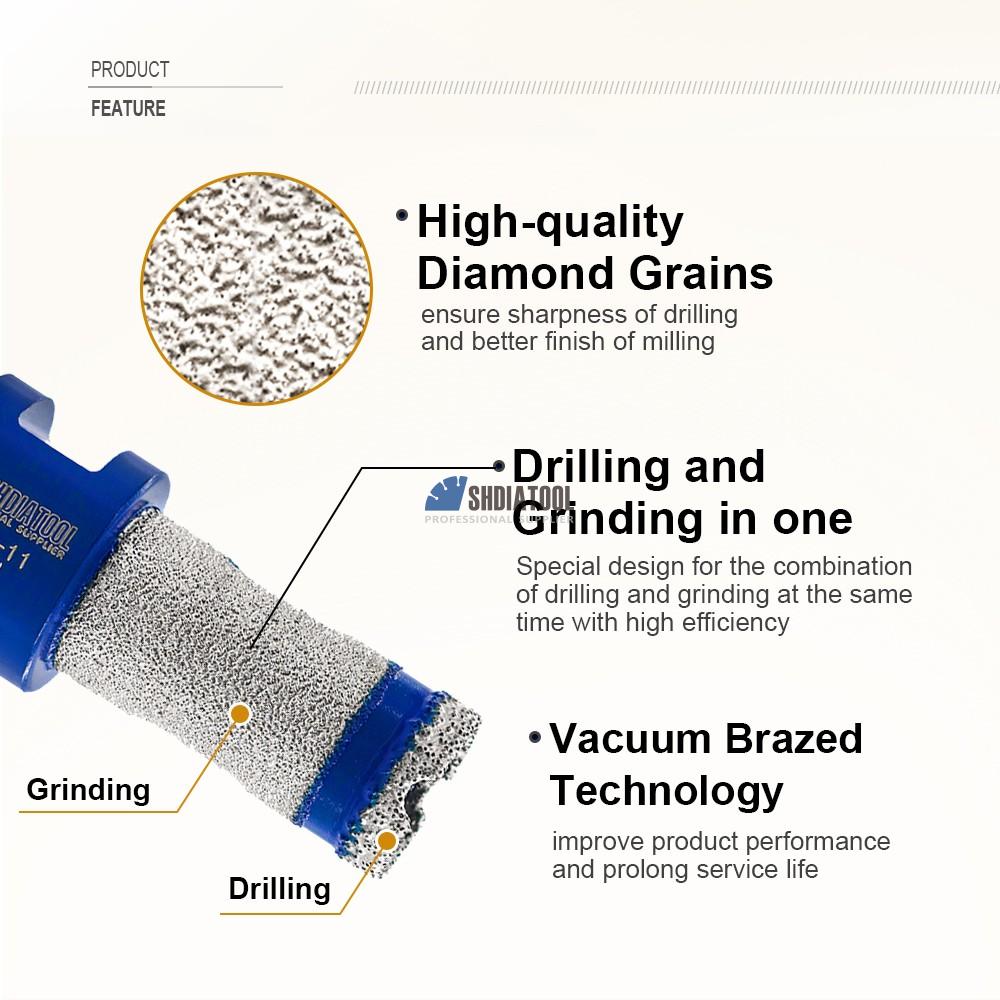

  • Drilling Part:Length 5mm,Grit#35/40
  • Milling Part:Length 30mm,Grit#70/80
  • Connection:M14 or 5/8''-11
    • Inquiry Send Email

    Description

    Customized support
    OEM, ODM
    Brand Name
    SHDIATOOL

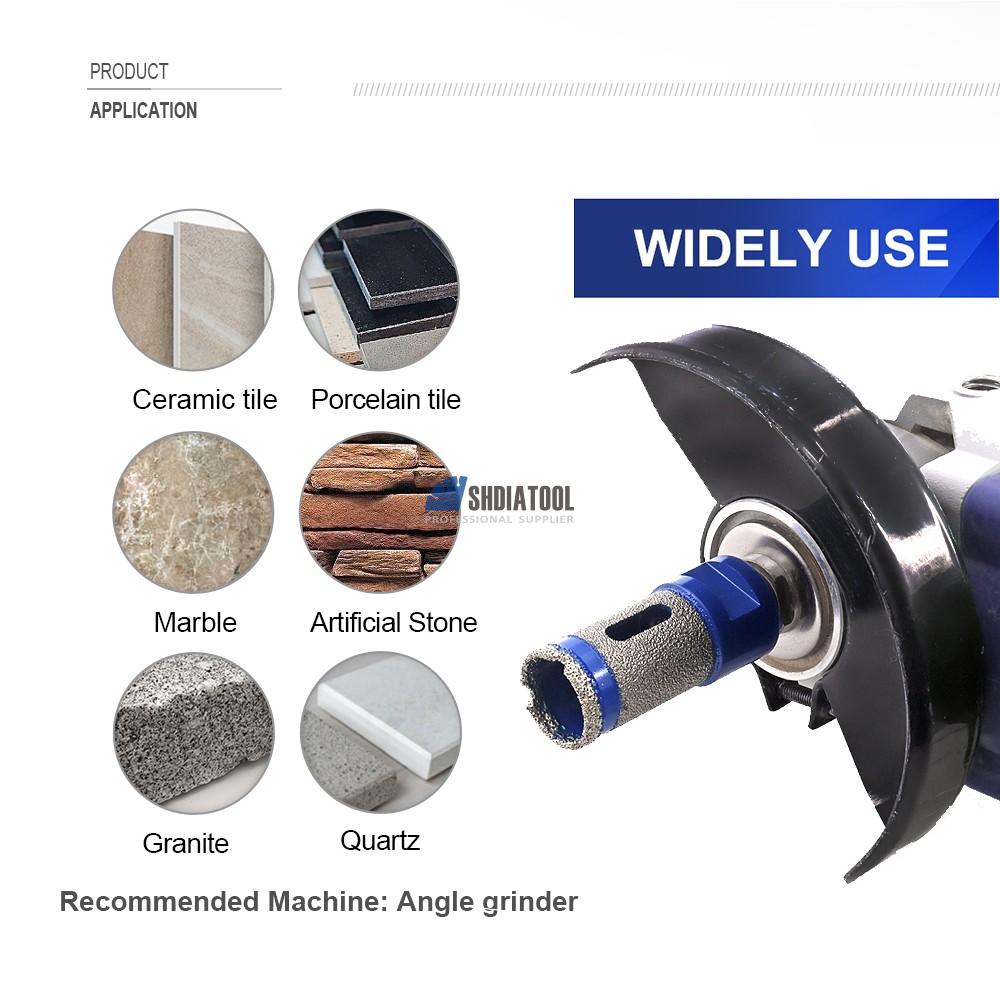

    Application

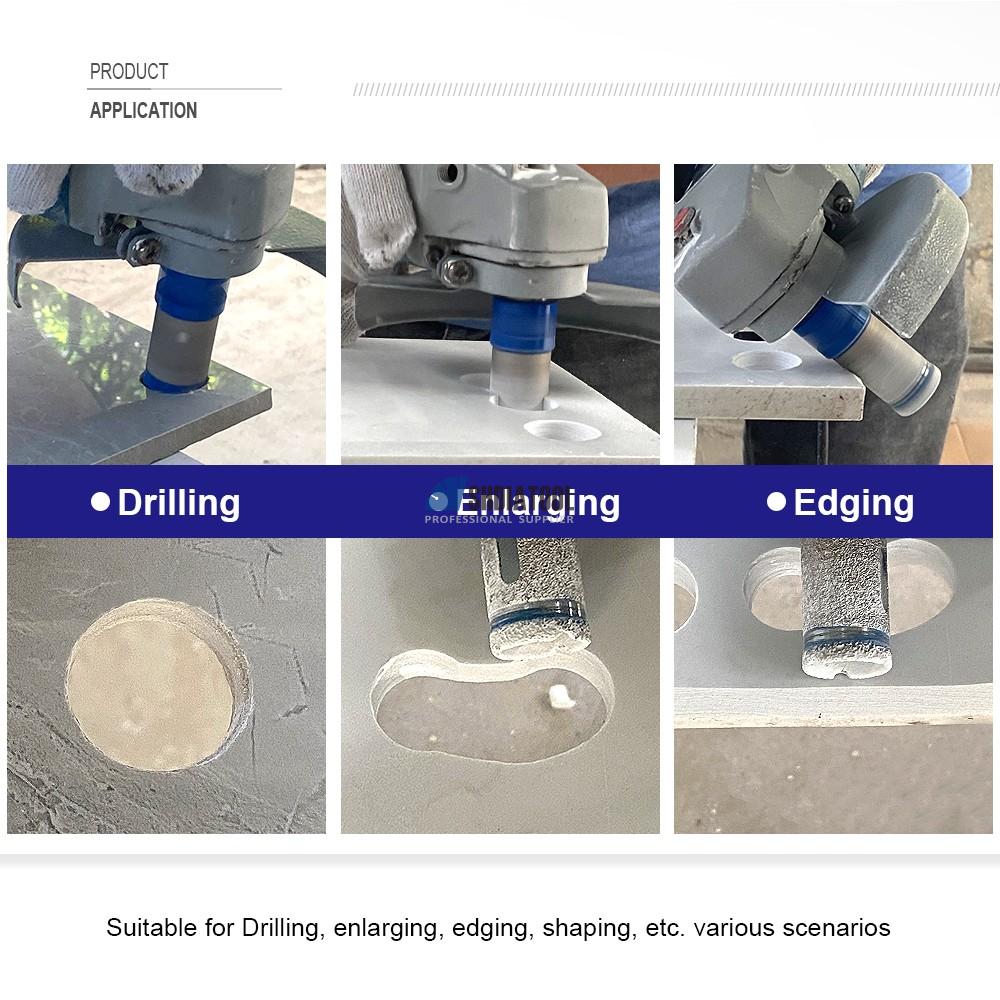

    1. Used for processing ceramic tile, porcelain tile, marble, granite and other materials;
    2.Dry or wet use, suitable for angle grinder.

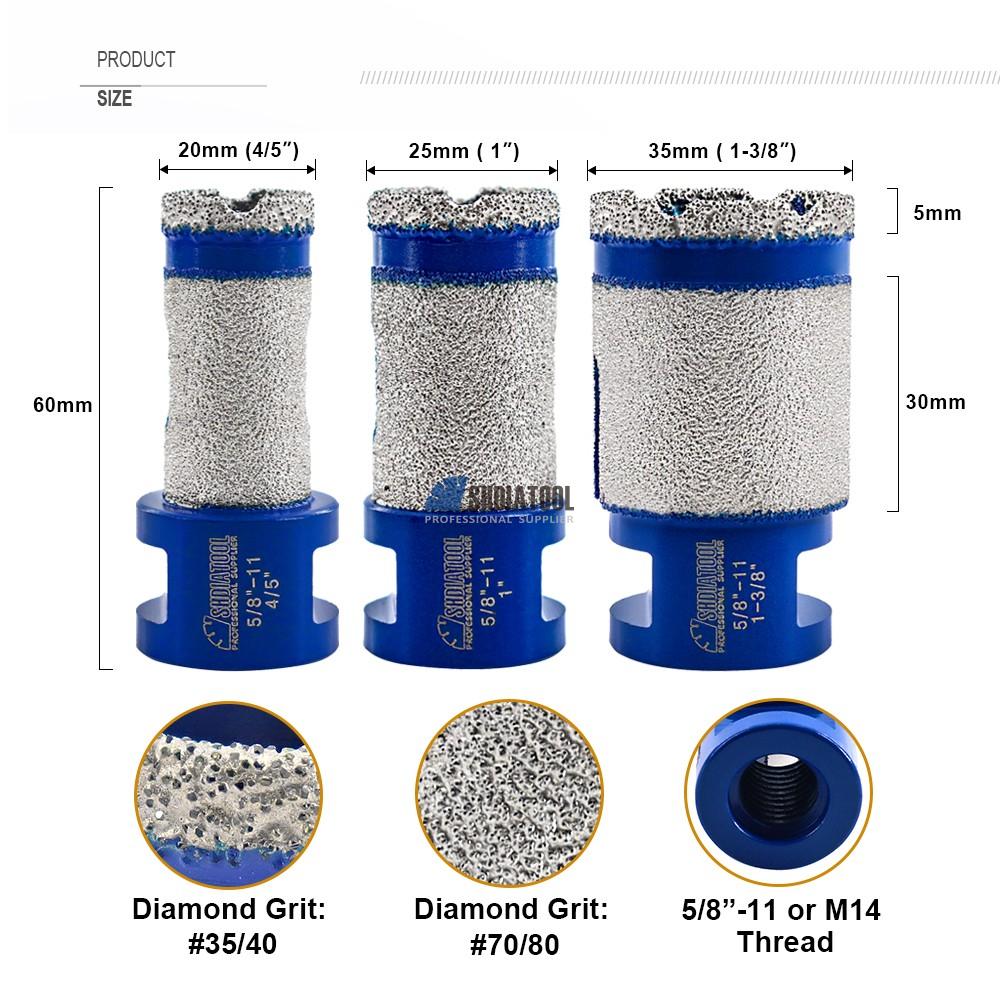

    Specification
    ·Diameter 20mm
    Drilling part: Diameter 20mm, Height 5mm; Grit #35/40;
    Grinding part: Diameter 20mm, Height 35mm; Grit #70/80
    Total length: 60mm

    ·Diameter 25mm:
    Drilling part: Diameter 25mm, Height 5mm; Grit #35/40;
    Grinding part: Diameter 25mm, Height 35mm; Grit #70/80
    Total length: 60mm

    ·Diameter 35mm:
    Drilling part: Diameter 35mm, Height 5mm; Grit #35/40;
    Grinding part: Diameter 35mm, Height 35mm; Grit #70/80
    Total length: 60mm
