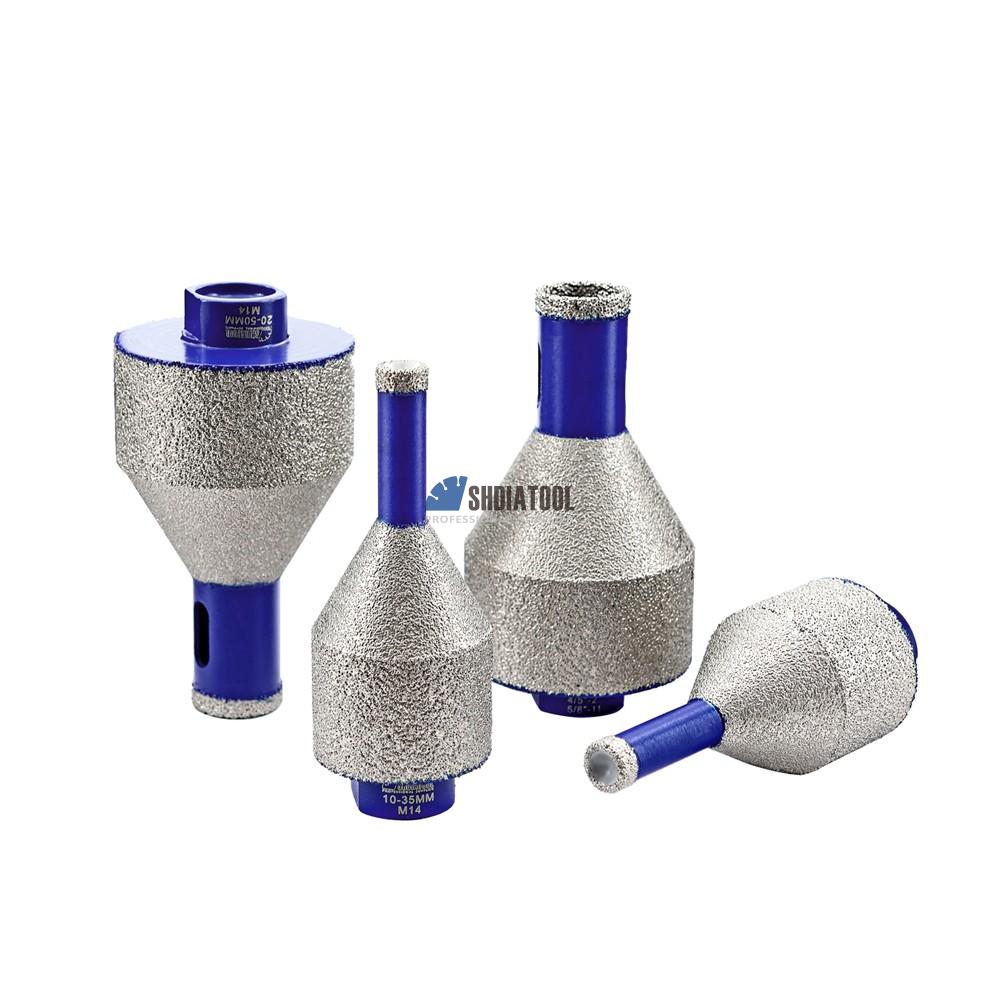

M14 or 5/8"-11 Vacuum Brazed Diamond Drill Chamfer Finger Beveling Bit Angle Grinder Milling Bits for Tile Marble Granite

item

Vacuum Brazed Diamond Milling Tool Chamfer Bit Finger Bit

Customized support

OEM, ODM

Brand Name

SHDIATOOL

Technology

Vacuum Brazed

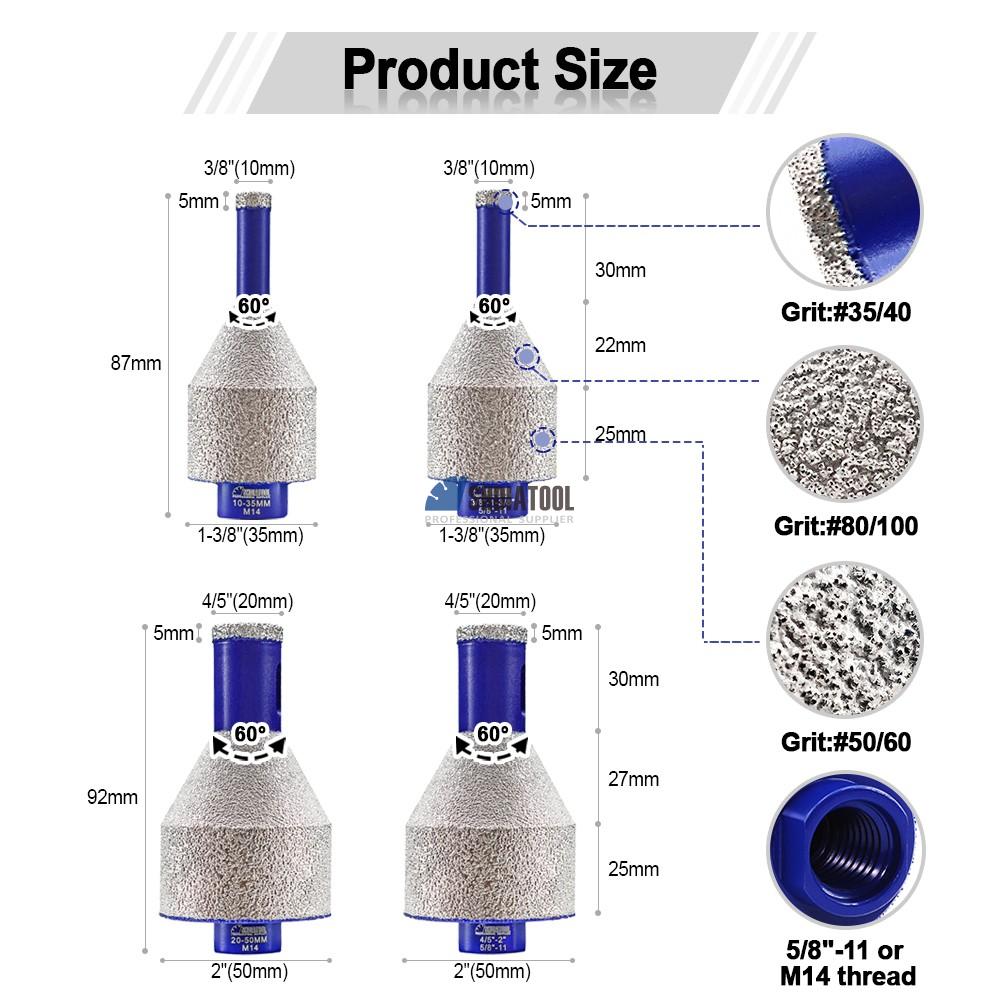

Specification

Diameter 35mm,Total length 87mm;
·Drilling Part: Diameter 10mm, Length 5mm,Grit#35/40
·Chamfering Part: Diameter 10-35mm, Length 22mm,Grit#80/100
·Milling Part: Diameter 35mm, Length 25mm,Grit#50/60

Diameter 50mm,Total length 92mm;
·Drilling Part: Diameter 20mm, Length 5mm,Grit#35/40
·Chamfering Part: Diameter 20-50mm, Length 27mm,Grit#80/100
·Milling Part: Diameter 50mm, Length 25mm,Grit#50/60

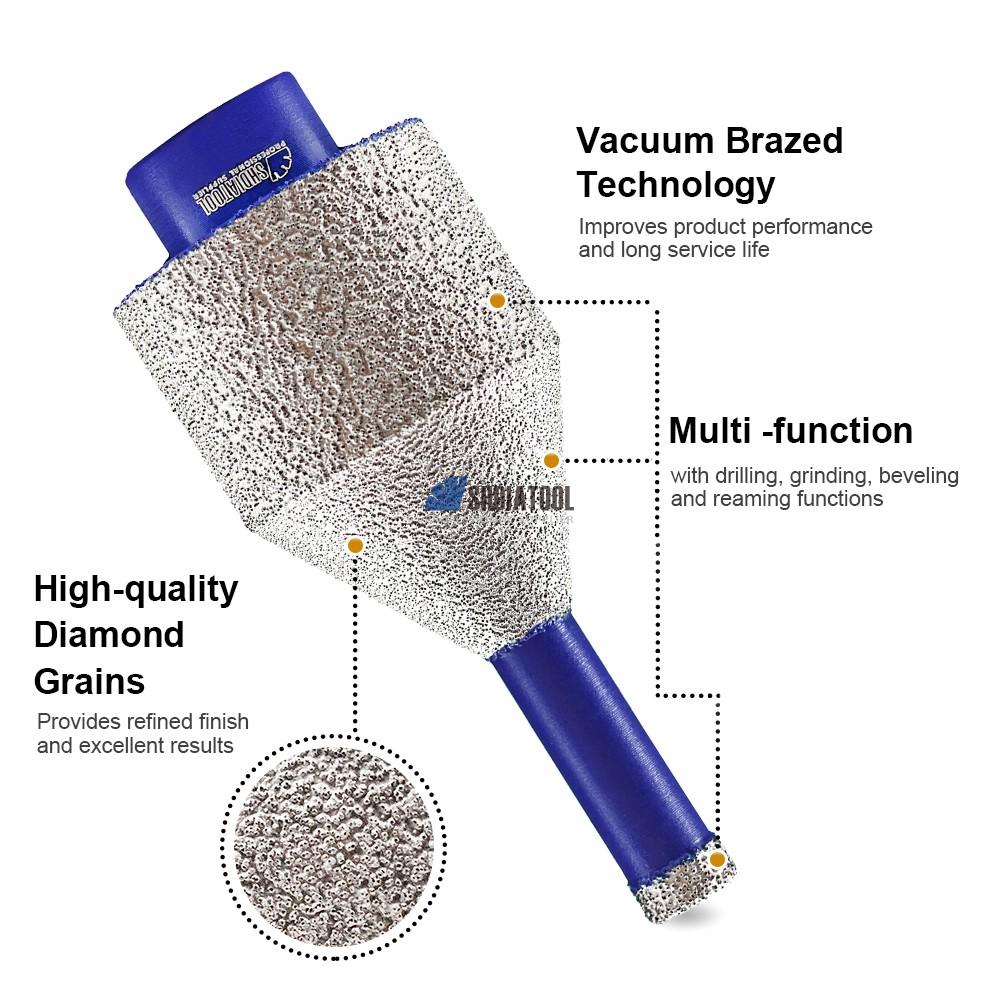

Feature

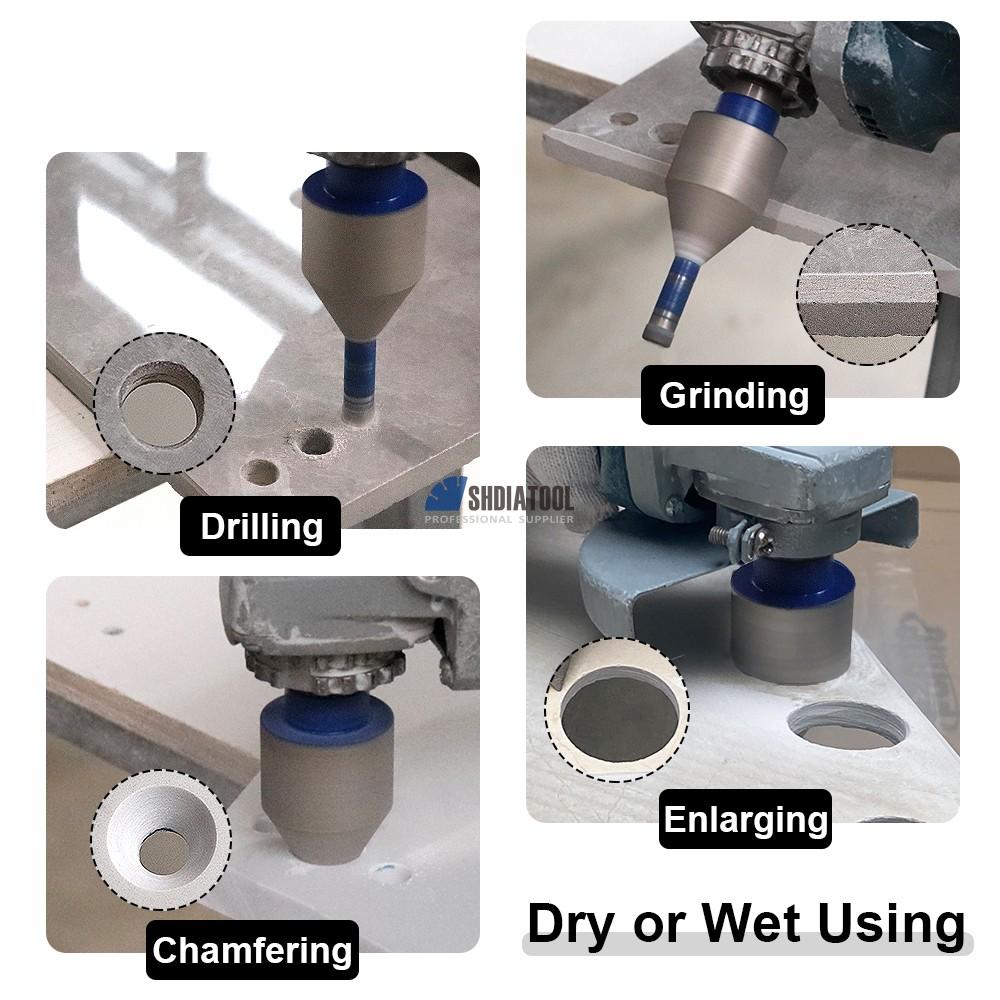

1.Multifunctional with drilling, grinding, chamfering, beveling and reaming functions.
2.Vacuum brazed technology improves product performance and prolongs service life.
3.High-quality diamond grains provides refined finish and excellent results.

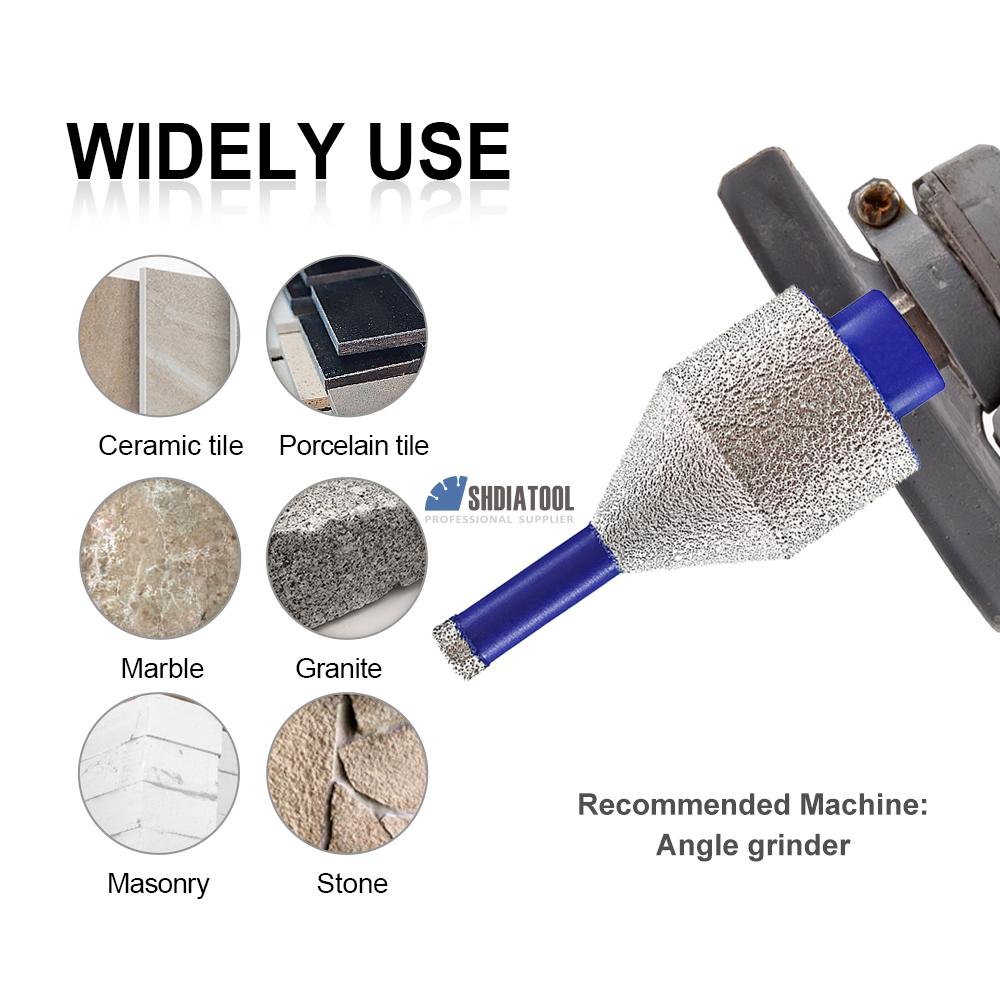

Application

1.Used for processing ceramic tile, porcelain tile, marble, granite and other materials;
2.Dry or wet use, suitable for angle grinder.
