Dia20/25/35mm Vacuum Brazed Diamond Beveling Chamfer Bit Hole Trimming Diamond Milling Bits with Hex Shank
Product Item：A868

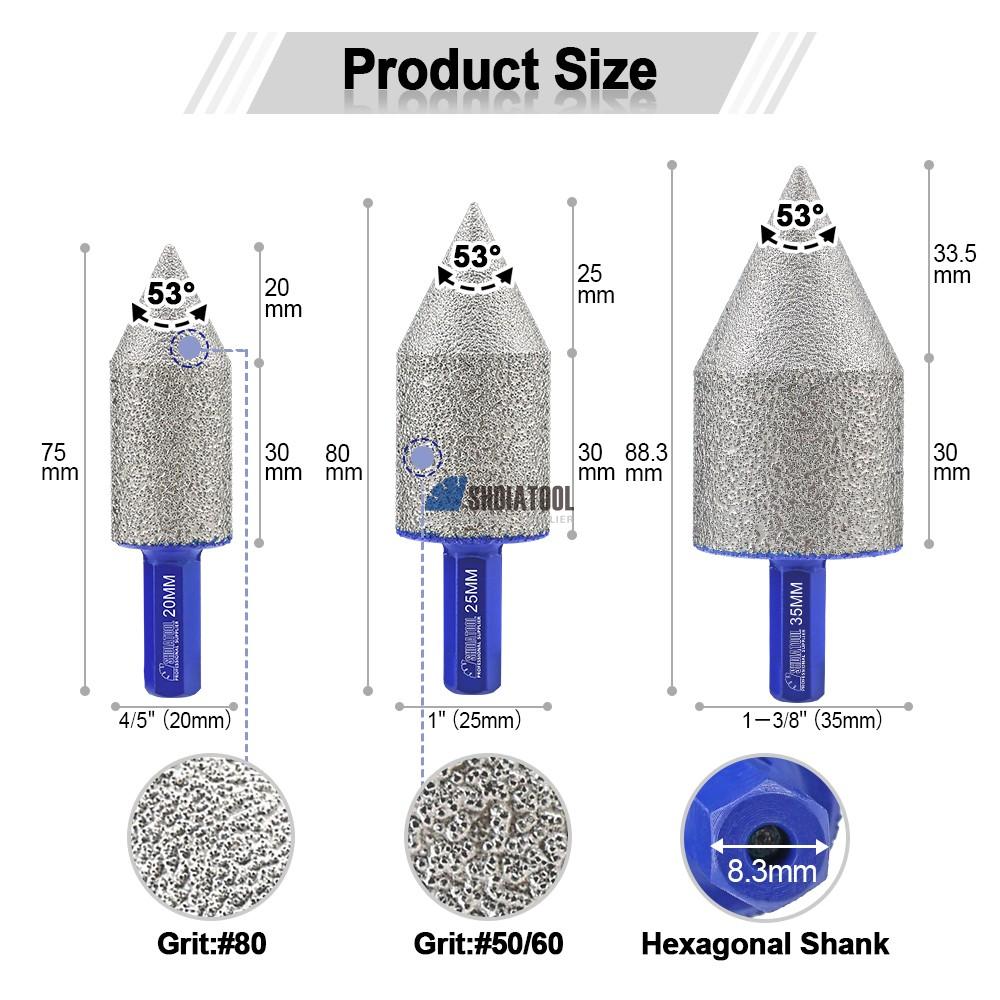

Diameter:20mm/25mm/35mm
Diamond height:52.7mm/57mm
Chamfer working height:20mm/25mm/33.5mm
Adapter:Hex Shank
Description
Diameter
20mm/25mm/35mm
Diamond height
52.7mm/57mm
Chamfer working height
20mm/25mm/33.5mm
Grinder working height
30mm
Adapter
Hex Shank
Grit
#50/60
Feature

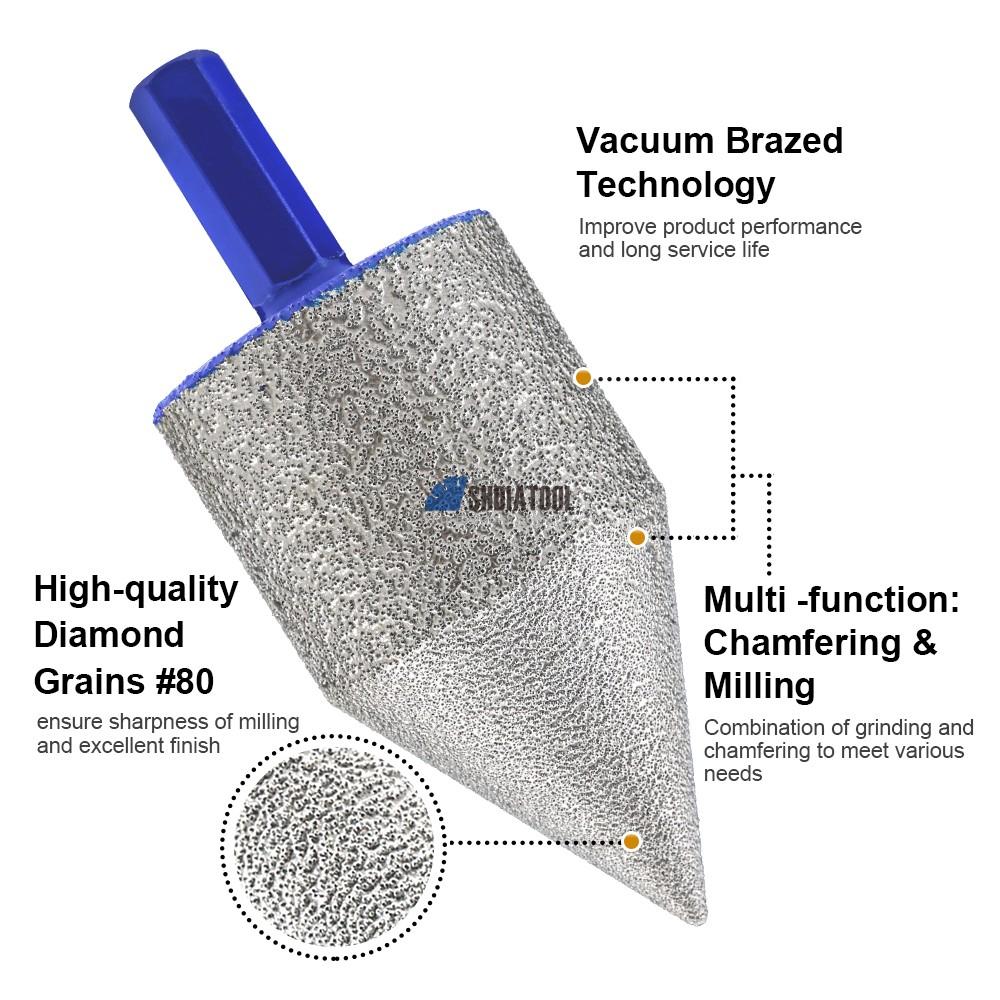

1. 【Chamfering and grinding Integrated】The special design of the combination of chamfering device and grinding rod, can meet various needs; ease chamfering, smooth rough holes, with higher processing efficiency;
2. 【Multiple functions】Provide functions such as reaming, chamfering, grinding, polishing, etc., suitable for reprocessing of various formed holes in various scenarios;
3.【Meet the requirements of multi sizes of holes】Beveling Chamfer Bit is suitable for making of inner hole below 35/50MM;Finger Bit is suitable for making of inner hole above 35/50MM;
4. 【Different particles】#80 high-quality diamond particles for chamfering,make the veneer effect better, #50/60 diamond particles for enlarging and grinding the hole quickly, the grinding is more efficient.
Application

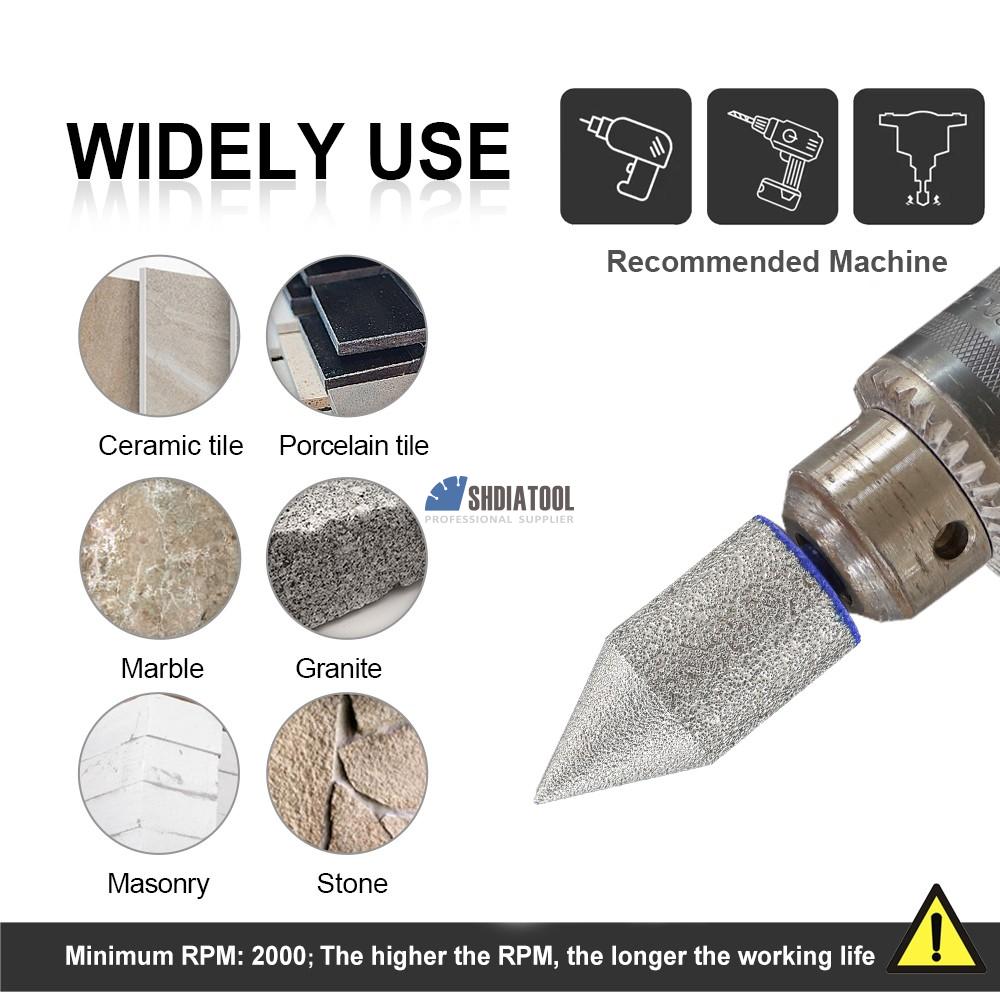

1. Used for processing ceramic tiles, porcelain tiles, marble, granite and other materials;

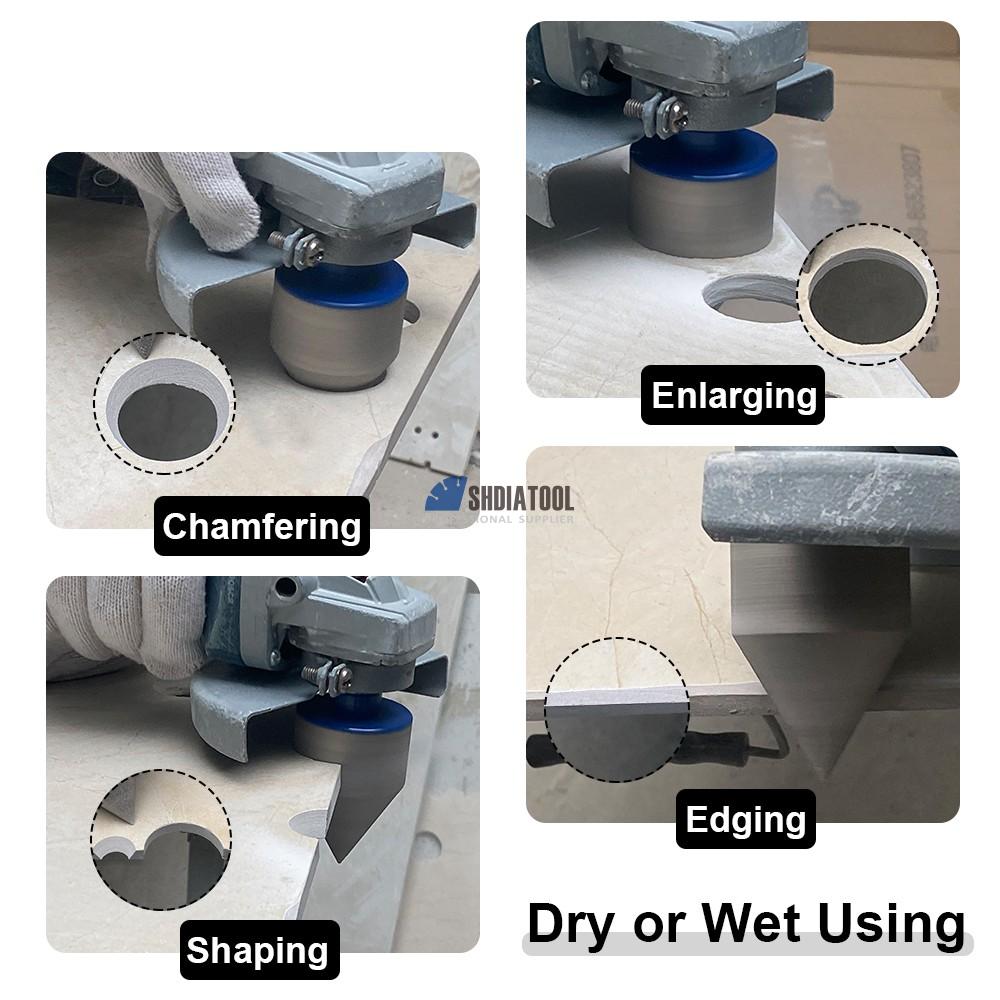

2. Enlarge, chamfer, grind and shape the formed holes, and repair the hole contour and finish;
3. It is suitable for grinding and chamfering work, and direct drilling is not recommended;
