6/10/20mm Vacuum Brazed Diamond Finger Milling Cutter Chamfer Beveling Bit For Enlarging Hole Tile Granite Marble
Product Item：A8676
Diameter:6mm/10mm/20mm
Diamond height:52.5mm/52.7mm/57mm
Total length:71.5mm/62.7mm/67mm
Connection:M14 or 5/8''-11
Description
Product name
Vacuum Brazed Chamfer Milling Cutter Finger Bit Cone Cutter

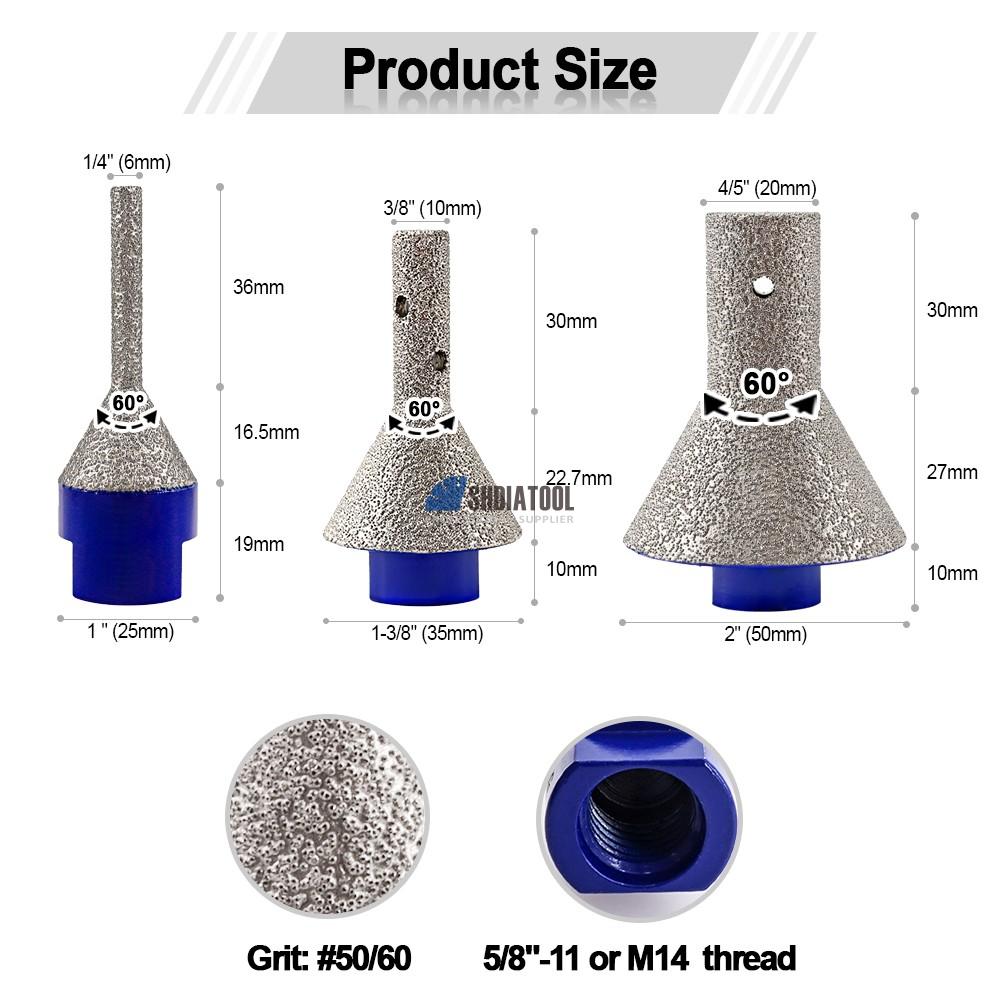

Specification
Diameter 6mm*25mm; Work length 52.5MM; Total length 71.5MM;
Diameter 10mm*35mm; Work length 52.7mm; Total length 62.7mm;
Diameter 20mm*50mm; Work length 57mm; Total length 67mm;
M14 or 5/8"-11 Thread; Grit #50/60;

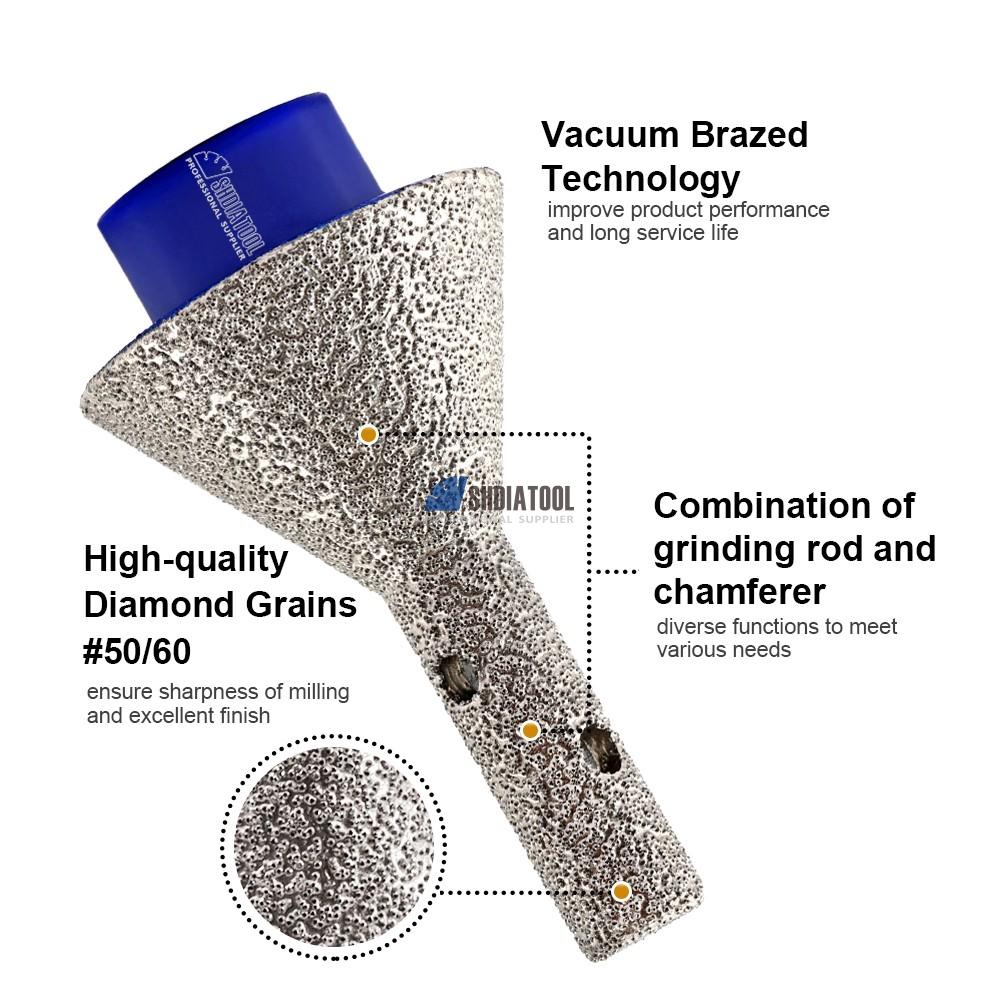

Feature
1. Vacuum brazed technology improve product performance and long service life;
2. Combination of grinding rod and chamfering to meet various demands;
3. High-quality Diamond Grains #50/60,ensure sharpness of milling and excellent finish.

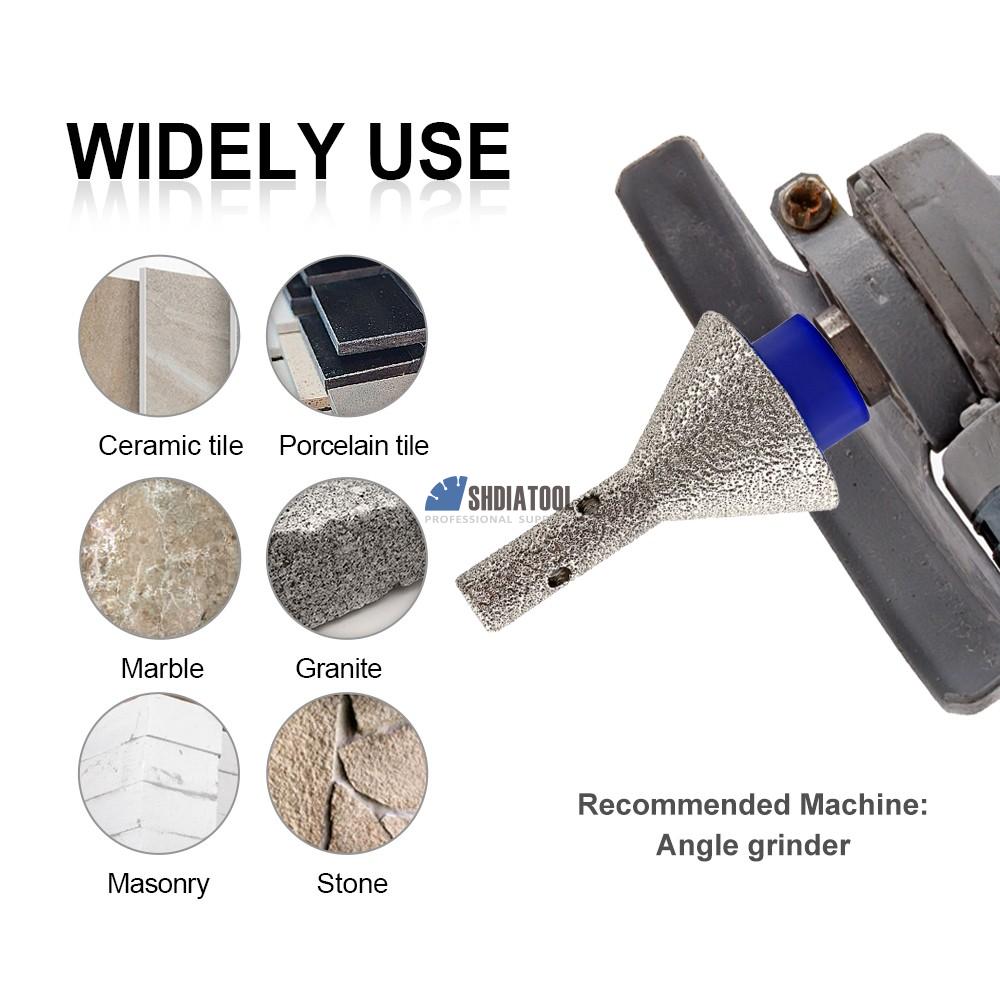

Application
1. For rocessing ceramic tiles, porcelain tiles, marble, granite and other materials;

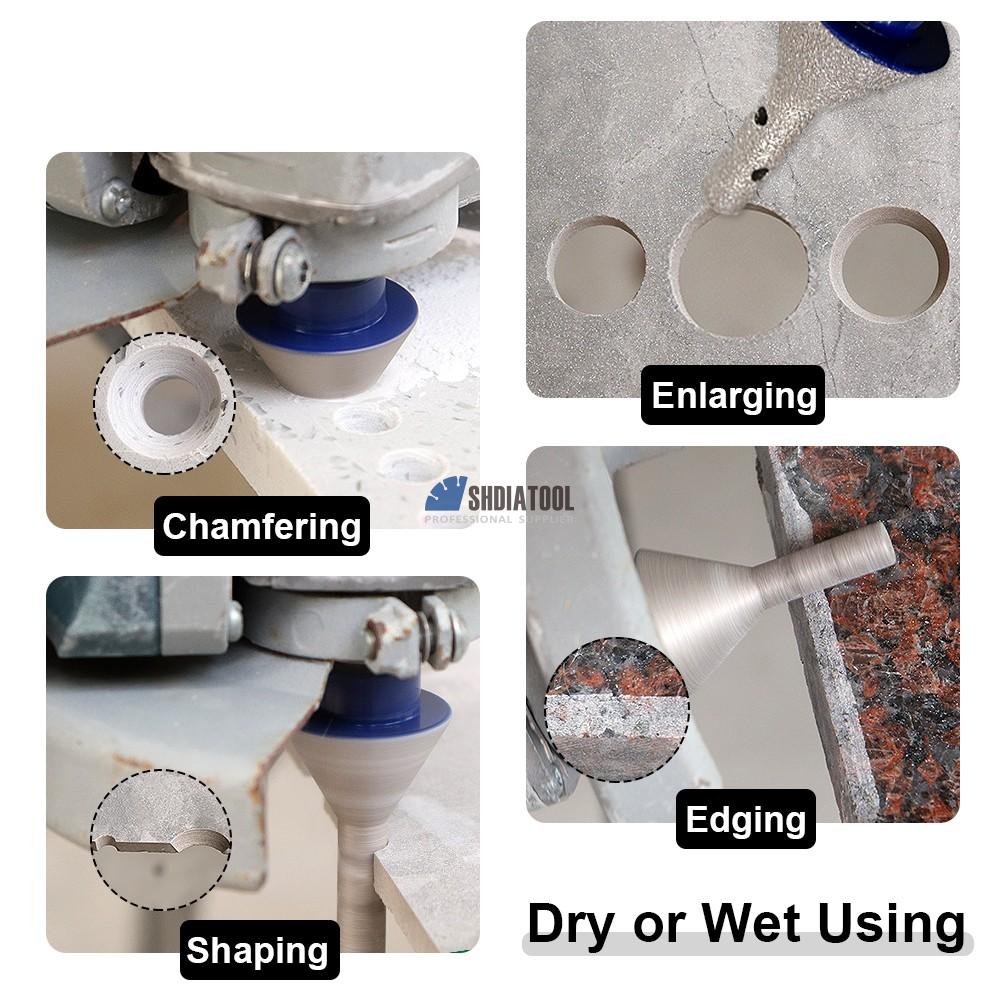

2. Enlarge, chamfer, polish and reshape formed holes, and repair the contour and finish of holes;
3. Suitable for grinding and chamfering, do not drill directly.
4. The recommended speed is 6000rpm, and the maximum speed is 11000rpm;
